WER-9060 (universal laser cutter)

Star series is the most powerful universal laser cutter, industrial laser engraving machine, almost all materials can be processed, versatile, simple to use.

Product Specification:
  • Machine size : 1400*980*980mm
  • Machine color : Grey-yellow
  • Working area : 900*600mm
  • Engraving thickness : 2mm(depends on material)
  • Cutting thickness : 2cm(depends on material)
Inquiry Now
Product Details
Specification
Application
Video
FAQ

wood and acrylic laser cutter

  • top laser cutters

     RUIDA  V8 CONTROL  SYSTEM

     Voiern universal laser cutter have powerful processing functions, visual operation and  easy to learn , can meet almost all customer processing requirements.

  • most affordable laser cutter

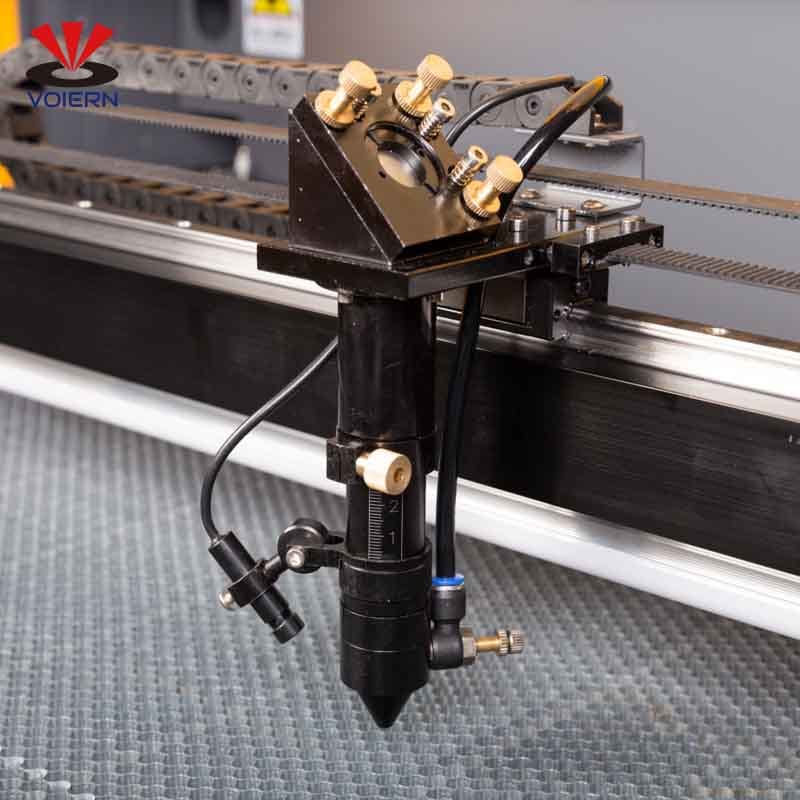

    Optical frame INDUSTRIAL  LASER HEAD

    The laser head of  industrial laser engraving machine enclosed jet design protects the lens from dust and keeps the lens highly translucent.

  • laser cutter for woodwork

    HIGH-SPEED MOTORS

    With 57 stepper motors, the engraving speed of universal laser cutter can reach 1000mm/s and the cutting speed can reach 500mm/s.

  • home laser cutter for wood

    H-Q GUIDE LINEAR RAIL

    Industrial laser engraving machine have stainless steel guide rail, moving slider bearing design, smaller friction coefficient, higher precision, faster operation with 57 motor.

  • digital laser cutter

    OPTIONAL WORKING AREA

    From 400mm*600mm to 900*1600, universal laser cutter meets the requirements of various sizes of materials for the job format.

  • computerized laser cutter

    FRONT AND REAR MATERIAL DESIGN

    Voiern universal laser cutter remove the size limit of the processed material, so that the length of the material is increased to an infinite length.



  • cheap cnc laser cutter

     HEIGHTENING MACHINE BOX

    Industrial laser engraving machine increase the height of the Z axis to meet the height requirements of materials such as large volume and shape.



  • best cheap laser cutter

    3M CONVEYOR BELT

    The famous brand conveyor belt be used in universal laser cutter guarantees a longer service life. the high quality belt  has less stretching and deformation  so that the operation accuracy is not affected.

  • 3d laser cutter wood

    AIR BLOWING

    It can protect  the lens from smoke pollution, ensure light transmission, remove excess heat and impurities, and prevent or reduce the possibility of scorch.

  • cheap 3d laser engraving machine

     IMPORTED LENSES

    Voiern laser universal laser cutter use High-Quality imported lenses ensure more precise beam focusing, finer beam and longer life.

  • cncshop laser engraving machine

     LASER TUBE

    Industrial laser engraving machine use  laser tubes of famous brand like RECI ,WEIJU , EFR ensures the stability  of the light source  and service life.

  • commercial laser engraving machine

    VARIABLE STARTING

    The V8 system sets a variable starting point for work, allowing you to work at any point within the working area.



TYPE WER-6040 WER-9060 WER-1080 WER-1390/1690
Machine size 1400*790*980mm 1400*980*980mm 1450*1140*980mm 1850*1310*1125mm/2150*1430*1125mm
Machine color Blue-White, Gray-Yellow
Working area 600*400mm 900*600mm 1000*800mm 1300/1690*900mm
Engraving thickness 2mm (depends on material) 2mm(depends on material) 2mm(depends on material) 2mm(depends on material)
Cutting thickness 2cm(depends on material) 2cm(depends on material) 2cm(depends on material) 2cm(depends on material)
Engraving speed 1-1000mm/s 1-1000mm/s 1-1000mm/s 1-1024mm/s
Cutting speed 1-500mm/s 1-500mm/s 1-500mm/s 1-500mm/s
Laser power 60w/80w/100w 60w/80w/100w 60w/80w/100w/1350w/150w 60w/80w/100w/1350w/150w
Laser type sealed CO2 laser tube sealed CO2 laser tube sealed CO2 laser tube sealed CO2 laser tube
Cooling mode water cooling protection system water cooling protection system water cooling protection system water cooling protection system
Water protection yes yes yes yes
Positioning way red light positioning red light positioning red light positioning red light positioning
Locating precision <=0.01mm <=0.01mm <=0.01mm <=0.01mm
Working platform Honeycomb Honeycomb Honeycomb/Blade platform Honeycomb/Blade platform
Lift range  0-300mm 0-250mm 0-250mm  0-350mm
Power supply AC220V/110V 50HZ AC220V/110V 50HZ AC220V/110V 50HZ AC220V/110V 50HZ
Net weight 120kg 180kg 200kg 380kg/420kg
Package Standard plywood case Standard plywood case Standard plywood case Standard plywood case
System environment WindowXP/win7/8/10 WindowXP/win7/8/10 WindowXP/win7/8/10 WindowXP/win7/8/10
Control software Coreldraw/RUIDA V8 Coreldraw/RUIDA V8 Coreldraw/RUIDA V8 Coreldraw/RUIDA V8



Material Engraving Cutting
Acrylic
wood
bamboo
glass
leather
paper
rubber
textile
plastic
metal
stone
ceramic





FAQ of universal laser cutter industrial laser engraving machine

 1. Connect computer to universal laser cutter with date lines but it does not work.

    A. Check the date lines, do not use  long date lines.

    B.Check the USB  port. It works or not.

    C. Check the date line and Softdog. make sure they all are plugged into computer.

 2. Engraving depth of industrial laser engraving machine is not uniform.

    A. Close the machine and after 1 hour start it check if there is water in water pipe.

    B. Check the light path, and adjust it( refer to vedio of adjusting light ).

 3. Turn on the switch of universal laser cutter, but is does not work.

    A.Check the power lines, it is connecting or not.

    B. Check the scram button, make sure it is closed.

 4. The  carving depth of industrial laser engraving machine  is too shallow.

    A. Adjust the light path to make sure the light is at the center.

    B. Check the lens, and make sure they are clean.

 5.Engraving blurred image of industrial laser engraving machine.

   A:Put the focusing mirror back or wrong focusing length. You should square the lens. Adjust to the specified

      focal length.

 6.universal laser cutter has spark.

   A:Poor electrical contact, or the air is too damp.You should connect the wire, clean the dust, keep air ventilate

      and dry.

 7. Engraving dislocation or stop engraving.

   A:Electrostatic interference with the motherboard or signal transmission error. You should install and check the

      ground wire, update the data cable or change the computer.

 8.The laser head of industrial laser engraving machine not has light.

    There are 4 points to be check:

   (1) Check electric current. Press“TEST”button on machine screen board.If there is not electric current showed

      on screen board, you should try to make sure all wires are connected well. If there is electric current showed

      on screen board, maybe the lens is broken,laser tube light exit and lens are contaminated. Or the light path

      offset.

   (2) Check water cycle. If there is not water cycle, maybe the water pump damage. If there is water cycle, please

       check whether the inlet and  outlet are connected in reverse, or pipe fractures.

   (3) If a dot emit light. If there is not a light,please check the wire between the engraving machine control board

       and the power supply is in good contact.

   (4) If above is no problem, maybe machine power damages, you should repair it.

       More about universal laser cutter, industrial laser engraving machine, please contact  us
