Mini Laser Machine

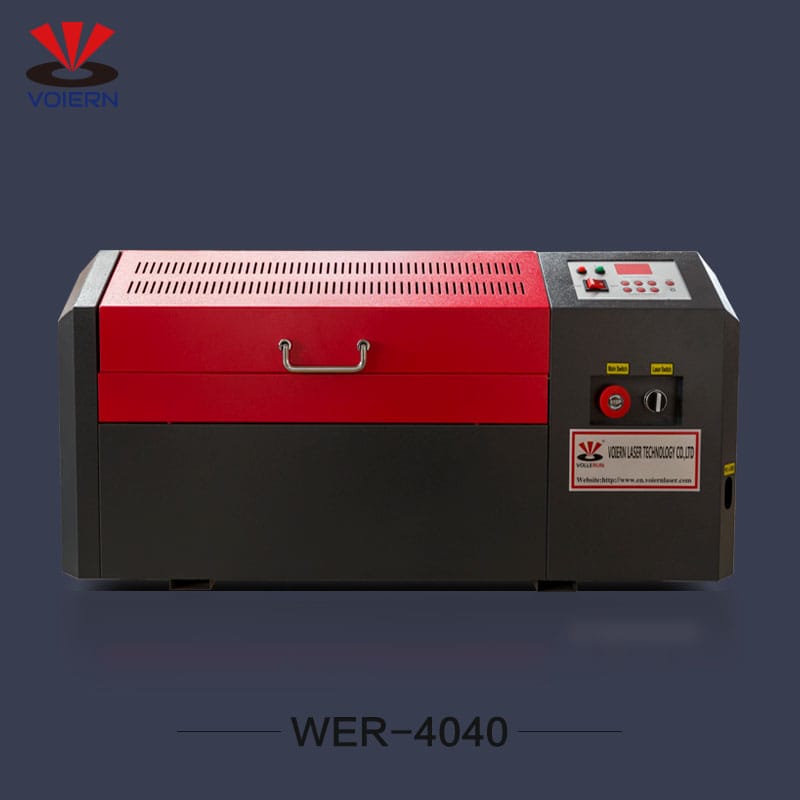

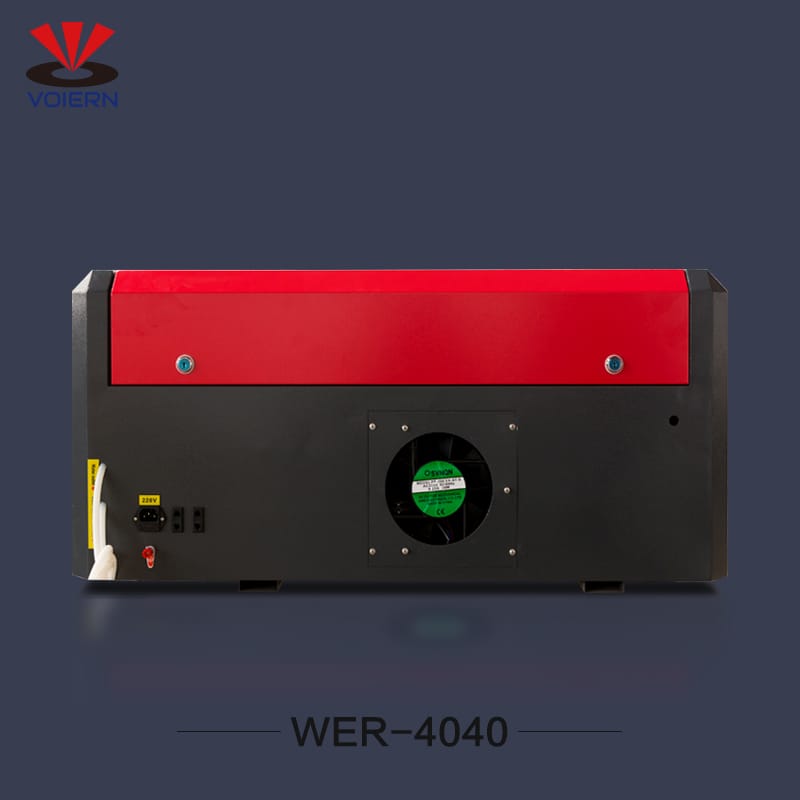

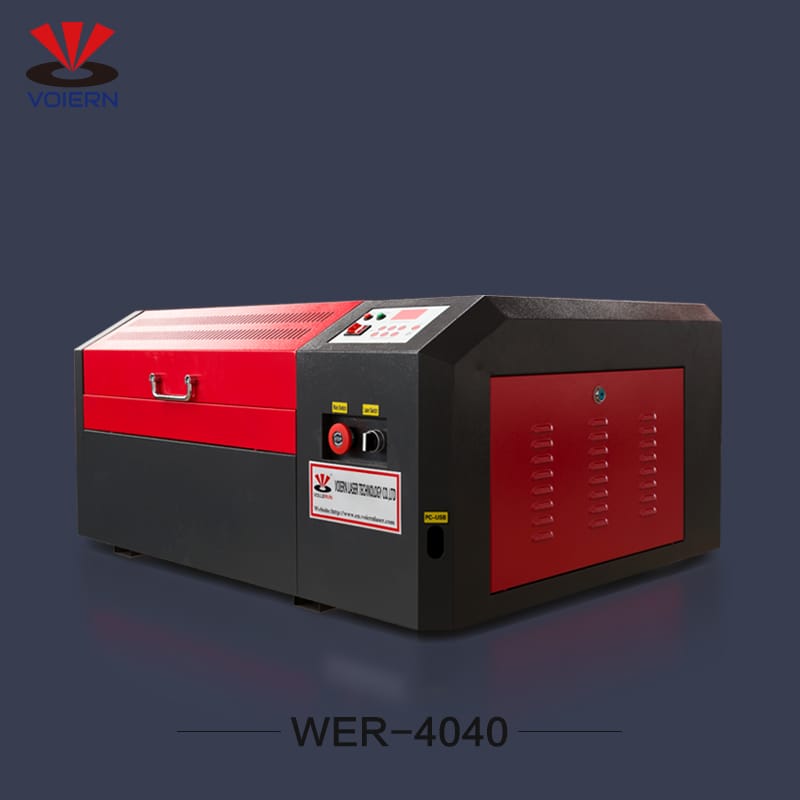

WER-4040 (portable Laser engraving machine)
Portable Laser engraving machine have characteristics of small occupation space, affordable price , powerful functions and high quality components.
Product Specification:- Machine size : 920*730*420mm
- Machine color : Dark grey-white,dark grey-red
- Working area : 400*400mm
- Engraving thickness : 2mm(depends on material)
- Cutting thickness : 2cm(depends on material)
These Machine accessories May you like
-

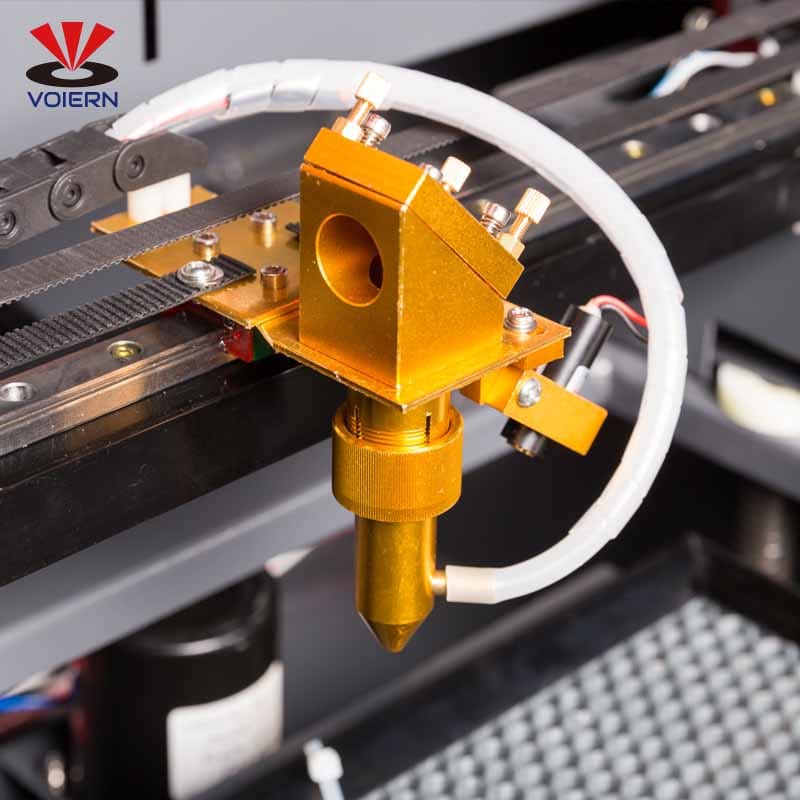

Industrial grade laser headLaser head of portable Laser engraving machine can be extended up to 6cm. Being very convenient for adjusting the focal length and high precision.
Extended up to 6cm
High precision
-
Optical frameThe optical path frame of portable laser engraving machine is made of thick aluminum plated plate, anti-oxidation, standardized components. It is very easy to adjust and the stability is stronger.
-
Imported linear guideReinforced bearing slide design. Stainless steel guide rail is rustproof and oxidation resistance. Lower drag coefficient, higher precision and smooth operation.
-
Tank track guide chainTank track guide chain of voiern portable Laser engraving machine protects the air pipe effectively, this design protects the wiring harness from wear and tear.
-
High-speed stepping motor Stable high-speed stepping motor, speed and stability of portable Laser engraving machine could also be comparable with the mainframe.
-
Red light positioning It can accurately posit the working position of the laser beam. Best desktop laser engraver working is high precision.
-
Jet tube assist It can protect the lens from smoke pollution and ensure light transmittance. Removing excess heat and impurities, so carbonization and charring will be avoided.
| TYPE | WER-3020 | WER-4030 | WER-4040 |
| Machine size | 800*530*250mm | 920*630*420mm | 920*730*420mm |
| Machine color | Dark grey-white,dark grey-red | ||
| Working area | 300*200mm | 400*300mm | 400*400mm |
| Engraving thickness | 2mm(depends on material) | 2mm(depends on material) | 2mm(depends on material) |
| Cutting thickness | 2cm(depends on material) | 2cm(depends on material) | 2cm(depends on material) |
| Engraving speed | 1-400mm/s | 1-400mm/s | 1-400mm/s |
| Cutting speed | 1-400mm/s | 1-400mm/s | 1-400mm/s |
| Laser power | 40W/50W | 40W/50W | 40W/50W |
| Laser type | sealed CO2 laser tube | sealed CO2 laser tube | sealed CO2 laser tube |
| Cooling mode | water cooling protection system | water cooling protection system | water cooling protection system |
| Water protection | yes | yes | yes |
| Positioning way | red light positioning | red light positioning | red light positioning |
| Locating precision | <=0.01mm | <=0.01mm | <=0.01mm |

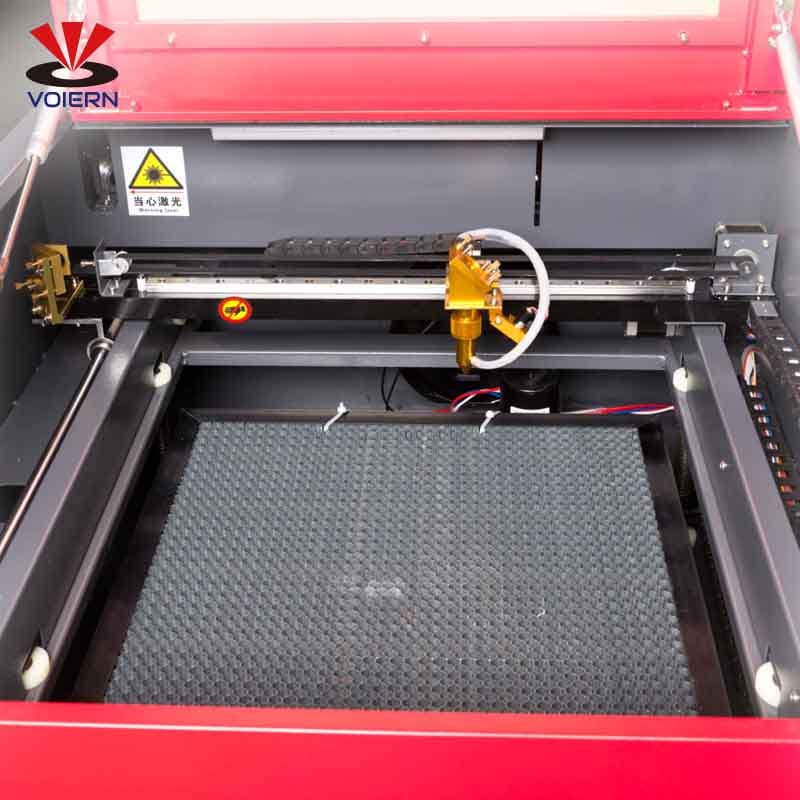

| Working platform | Honeycomb | Honeycomb | Honeycomb |
| Lift range | Manual 0-50mm | Electronic lift0-150mm | Electronic lift0-150mm |
| Power supply | AC220V/110V 50HZ | AC220V/110V 50HZ | AC220V/110V 50HZ |
| Net weight | 40kg | 50kg | 50kg |
| Package | Standard plywood case | Standard plywood case | Standard plywood case |
| System environment | WindowXP/win7/8/10 | WindowXP/win7/8/10 | WindowXP/win7/8/10 |
| Control software | Coreldraw | Coreldraw/V8 | Coreldraw/V8 |
| Material | Engraving | Cutting |
| Acrylic | √ | √ |
| wood | √ | √ |
| bamboo | √ | √ |
| glass | √ | |
| leather | √ | √ |
| paper | √ | √ |
| rubber | √ | √ |
| textile | √ | √ |
| plastic | √ | √ |
| metal | ||
| stone | √ | |
| ceramic | √ |
FAQ Of portable Laser engraving machine best desktop laser engraver
1. Connect computer to best desktop laser engraver with date lines but it does not work.
A. Check the date lines, do not use long date lines.
B. Check the USB port, It works or not.
C. Check the date line and Softdog, make sure they all are plugged into computer.
2. Engraving depth of best desktop laser engraver is not uniform.
A. Close the machine and after 1 hour then start it and check if there is water in water pipe.
B. Check the light path, and adjust it( refer to vedio of adjusting light ).
3. Turn on the switch of portable laser engraving machine, but is does not work.
A. Check the power lines, it is connecting or not.
B. Check the scram button, make sure it is closed.
4. The engraving thikness of best desktop laser engraver is small.
A. Adjust the light path to make sure the light is at the center.
B. Check the lens, and make sure they are clean.
5.Portable laser engraving machine has engraving blurred image.
A. Put the focusing mirror back or wrong focusing length, you should square the lens, adjust to the specified
focal length.
6. Best desktop laser engraver has spark.
A. Poor electrical contact, or the air is too damp.You should connect the wire, clean the dust, keep air ventilate
and dry.
7.Engraving dislocation or stop engraving.
A. Electrostatic interference with the motherboard or signal transmission error.You should install and check the
ground wire, update the data cable or change the computer.
8.The laser head of portable laser engraving machine not has light.
There are 4 points to be check:
(1) Check electric current. Press“TEST”button on machine screen board.If there is not electric current showed
on screen board, you should try to make sure all wires are connected well. If there is electric current showed
on screen board, maybe the lens is broken,laser tube light exit and lens are contaminated. Or the light path
offset.
(2) Check water cycle. If there is not water cycle, maybe the water pump damage. If there is water cycle, please
check whether the inlet and outlet are connected in reverse, or pipe fractures.
(3) If a dot emit light. If there is not a light,please check the wire between the engraving machine control board
and the power supply is in good contact.
(4) If above is no problem, maybe machine power damages, you should repair it.
More about best desktop laser engraver portable laser engraving machine please contat us
